Pivot Flood Gates

Flood Control International AUSTRALIA

Pivot Flood Gates for Fast Reliable Flood and Spill Protection

Convenience and rapid operation make our pivot flood control gates the ideal flash flood defence or spill containment barrier.

The precision gas lift mechanism enables the gate to be effortlessly raised and lowered and the single point locking system clamps the pivot gate in place at the turn of a lever.

Patented seals are designed to resist clogging and to reform after prolonged periods of compression making the system ideal for long term and semi-permanent flood defence installation.

Automated or semi-automatic flood pivot gates can be triggered by fire alarm, smoke detectors, heat detectors or water detectors or push button controlled for daily use.

Specifically designed as flood protection for loading bays and wide openings, the pivot gate supports are custom manufactured to clear any existing obstacles, roller shutters, crash bars etc, and the raised flood gate is safely positioned to the side of the opening leaving the access totally free.

Pivot Flood Gates

The flood control gates are available for flood protection heights between 200mm and 600mm as standard and higher or custom systems are possible dependent on span requirements and location.

A single pivot flood gate can protect openings in flood defences up to 4.25m wide and dual flood gates can be linked with a removable central support for wider apertures. A manual slot-in version of the system is also available for use in locations with insufficient space at the side of the opening to install a pivot flood gate.

Pivot Flood Gates Benefits

A low cost flood barrier system that delivers reliable protection.
Lightweight sections allow one person to lift beams of three metres for rapid and safe deployment.
The system is flexible and can be designed to suit a wide range of layouts.
Each beam is engineered for strength and can span openings of up to three metres.
A wide bottom seal ensures the barrier can sit securely on most solid surfaces.
The entire system is removable, leaving the ground surface clear and flat.
It is resistant to vandalism with protective covers and clamps that can be securely locked.
All components can be finished with powder coating in any standard RAL colour.
A long lifespan is ensured through the use of aluminium and hot dip galvanised materials.

Pivot Flood Gates Uses

Designed to protect single building apertures from flooding.
Effective for installation across openings in flood walls.
Manufactured from stainless steel and aluminium, making it suitable for marine environments.
Provides a fully removable perimeter defence system for buildings.
Can be stored and quickly erected when flood warnings are received.
Can also remain in place as a permanent flood defence until access is required.

Pivot Flood Gates Video

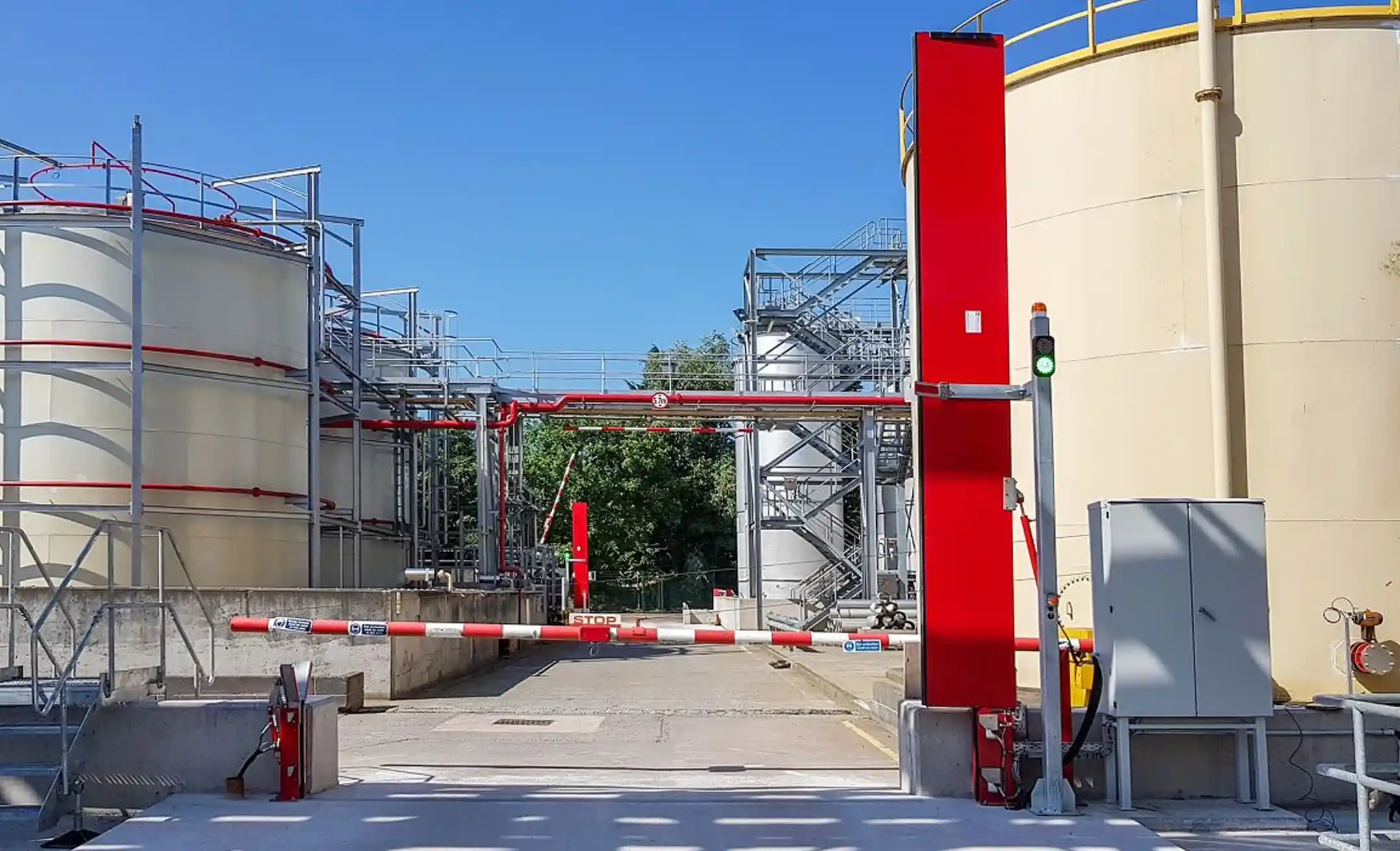

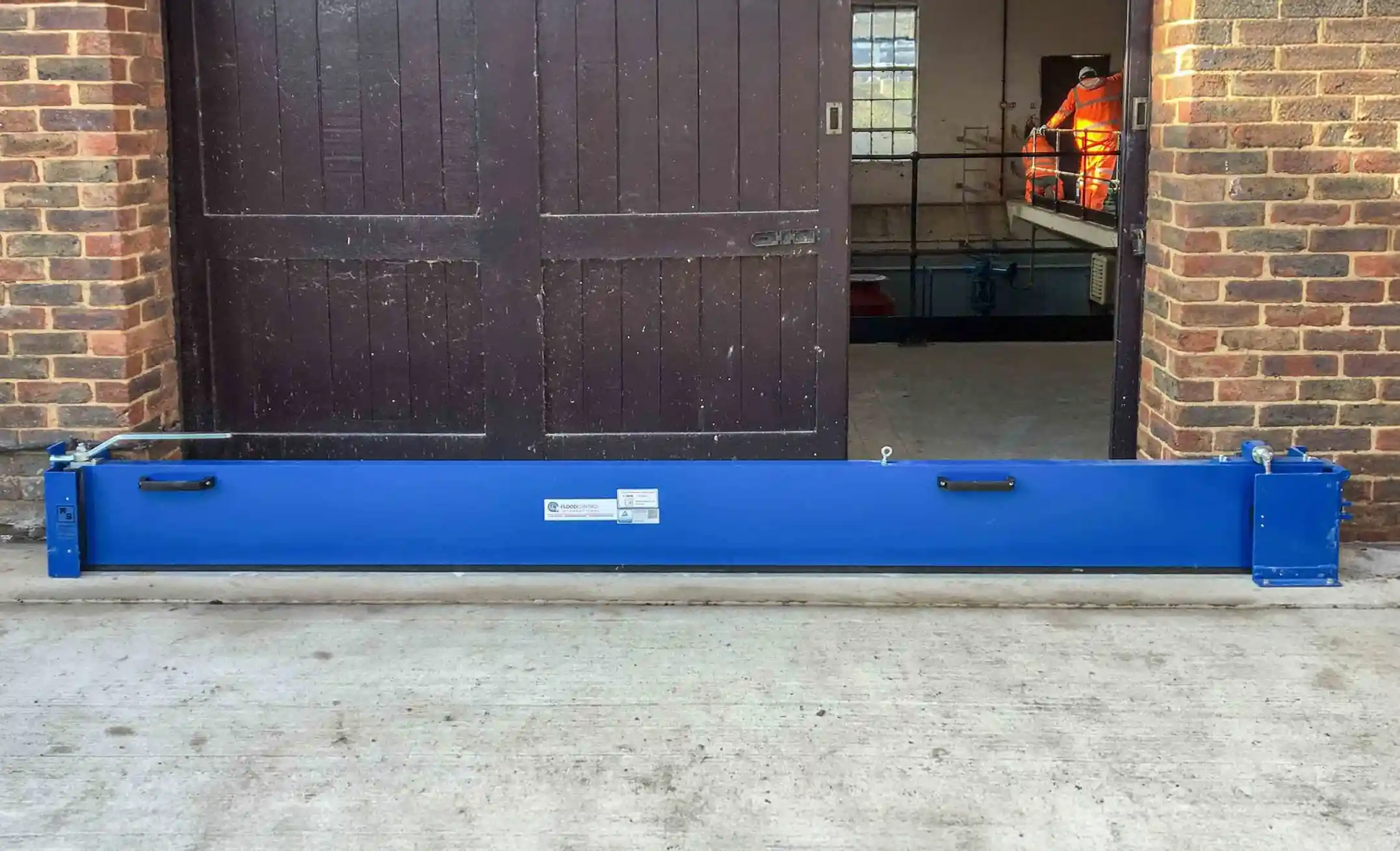

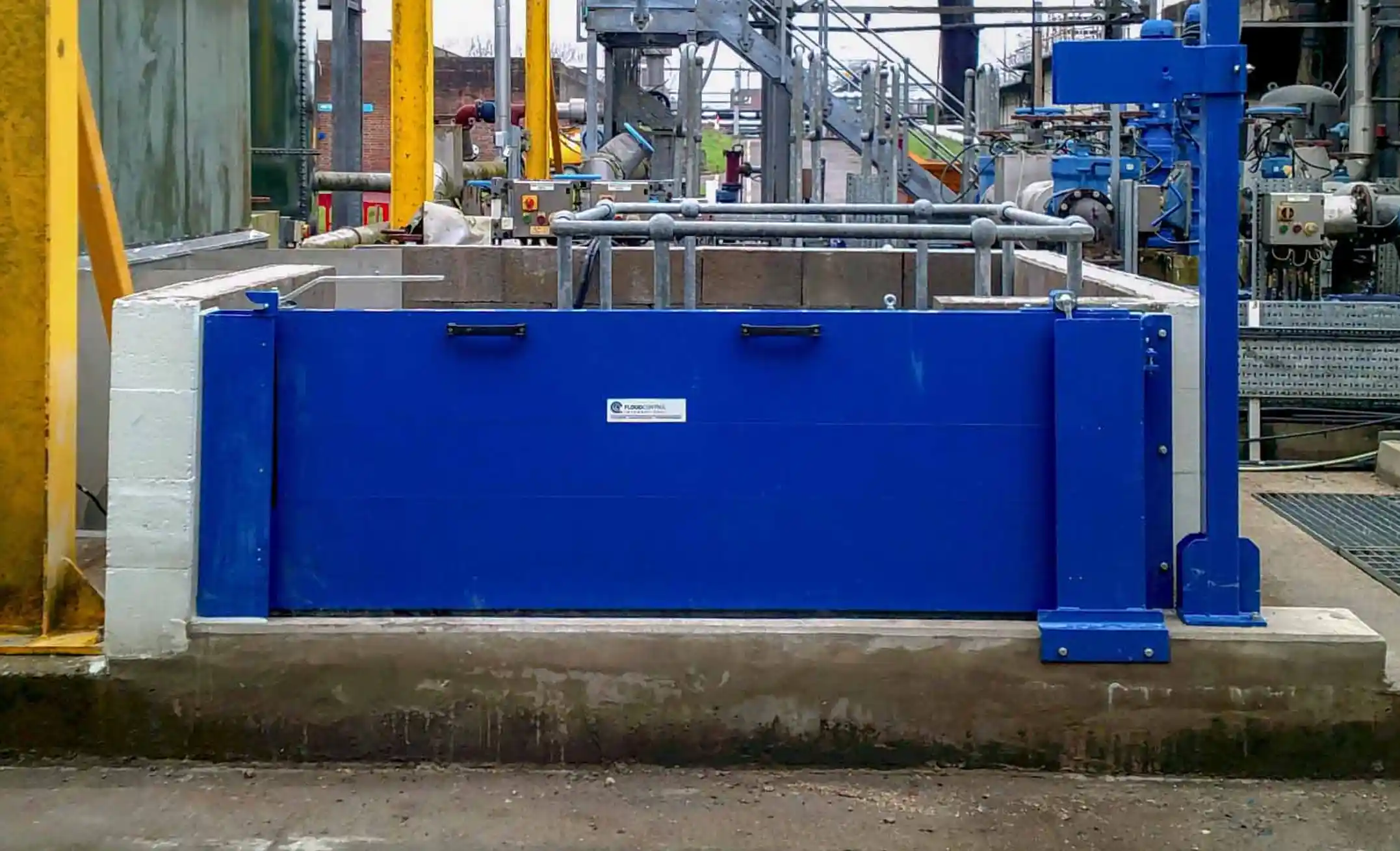

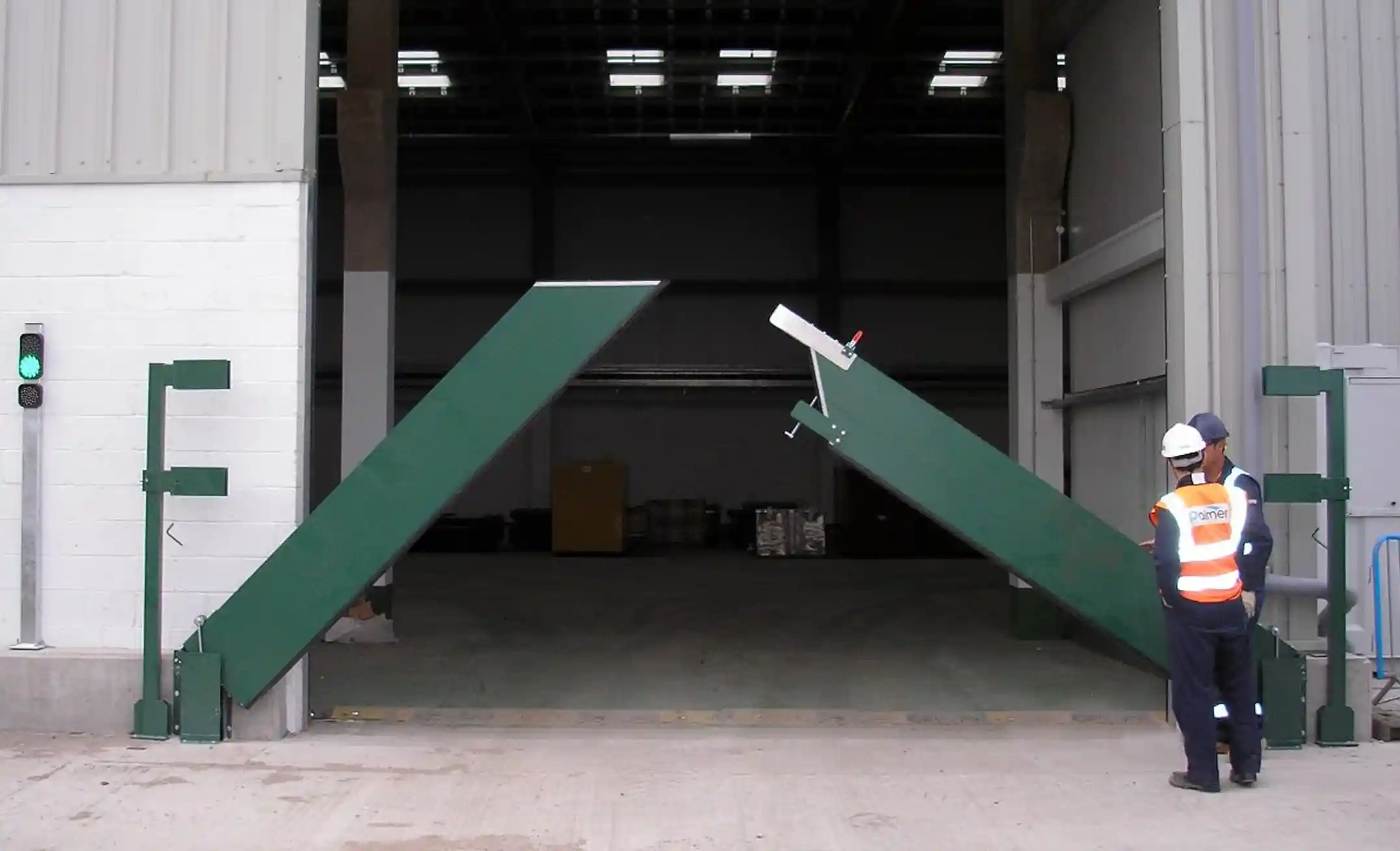

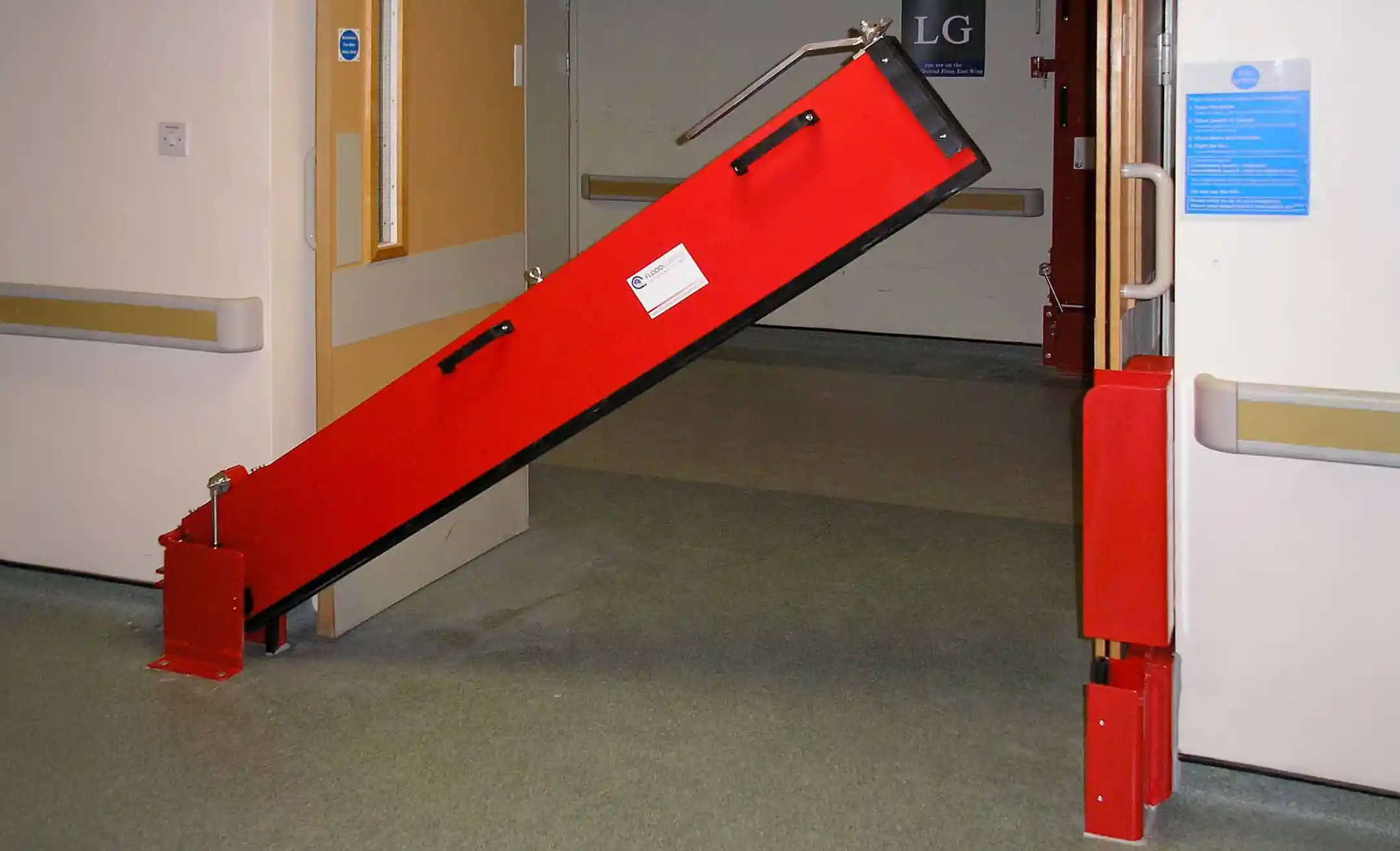

Pivot Flood Gates Gallery
